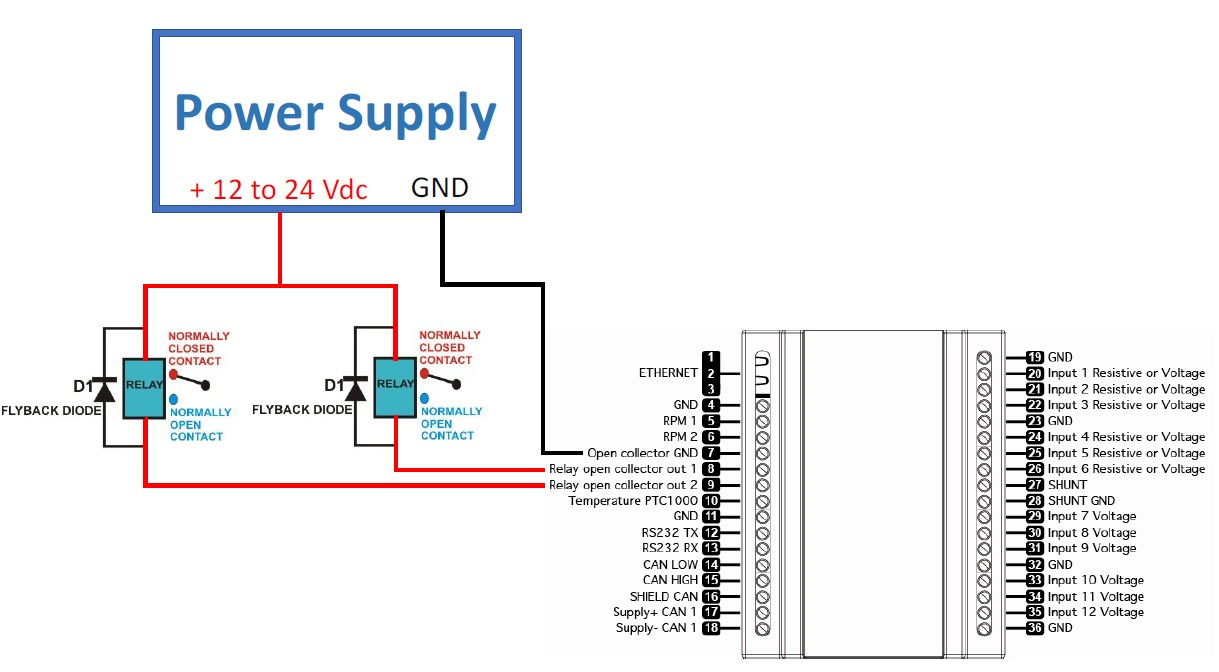

AlbaCombi is able to manage two open collector relays. The max current of the open collector must be 25mA. Therefore, it should only be used with “low power” relays. If you want to switch more power, the relay output must be connected to a contactor or similar to work with larger loads.
For example we give you the link of two compatible relays for the AlbaCombi, one to work at 12Vdc and other for 24Vdc:
– 24 Vdc: https://www.phoenixcontact.com/online/portal/es?uri=pxc-oc-itemdetail:pid=2903370&library=eses&tab=1– – 12 Vdc: https://www.phoenixcontact.com/online/portal/es?uri=pxc-oc-itemdetail:pid=2903371&library=eses&tab=1
Any question contact us
